In terms of the range of plastic recycling, plastic PE PP film recycling occupy the majority of soft plastic recycling. This kind of soft plastics include industrial waste film, shopping bag, garbage bag, agriculture film, ground film, and PP non woven, woven bag, jumbo bag, etc.

In view of the uncertainty of the recycling method and storage state of the waste soft plastics, and the waste film plastics contain various of impurities, such as: label paper, food residue, straw, wood chips, sand, and so on. In the recycling process, if customer wants to get clean clear color and transparent granules, customer has to wash the film plastics before granulating if the materials are not clean. After continuous research and improvement by our company, we have designed plastic granulating solutions according to our client’s actual plastic material conditions. From the waste materials to the final products processing, we always adhere high efficiency, energy saving and stability. Solve problems for customers and achieve mutual benefit and win-win.

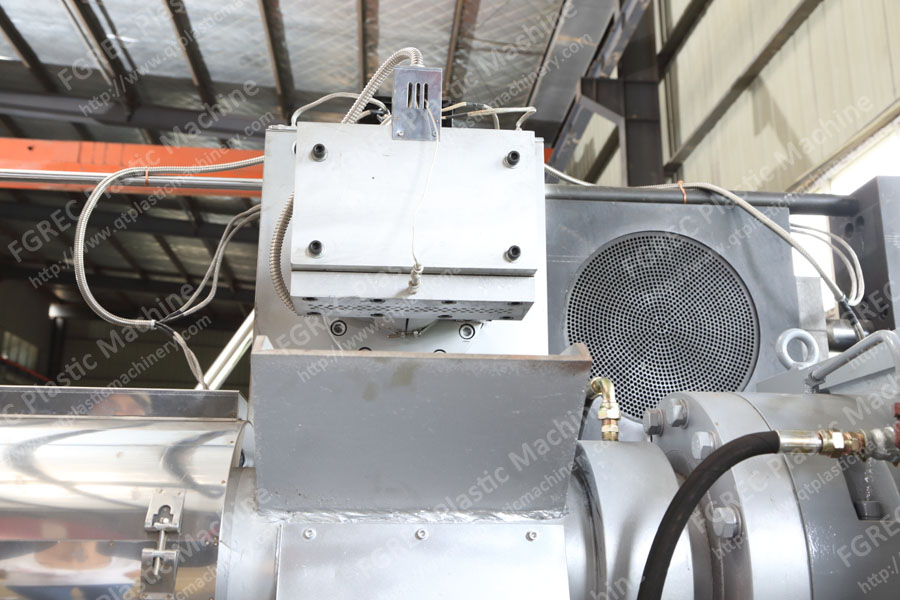

LLDPE Plastic Bag Granulating Machine

We consult foreign advanced equipment technology, visit our customers’ factories, listen carefully to customers’ actual operating experience, digest and absorb the advanced concepts of the recycling industry, and combine the actual development of the waste plastics industry to continuously improve the design of equipment components, which can meet the domestic and international recycling plastics industry. Requirements and ability to meet the environmental policy of the local recycling industry.

Waste PE PP plastic film granulating production line mainly consists of Belt conveyor, Cutter Compactor, Single Screw Extruder, Degassing, Hydraulic Screen Changer, Die Mould, Water ring Pelletizing or Spaghetti Pelletizing, Centrifugal Dewatering or Cooling Water Tank, Silo, and Electric Control Panel.

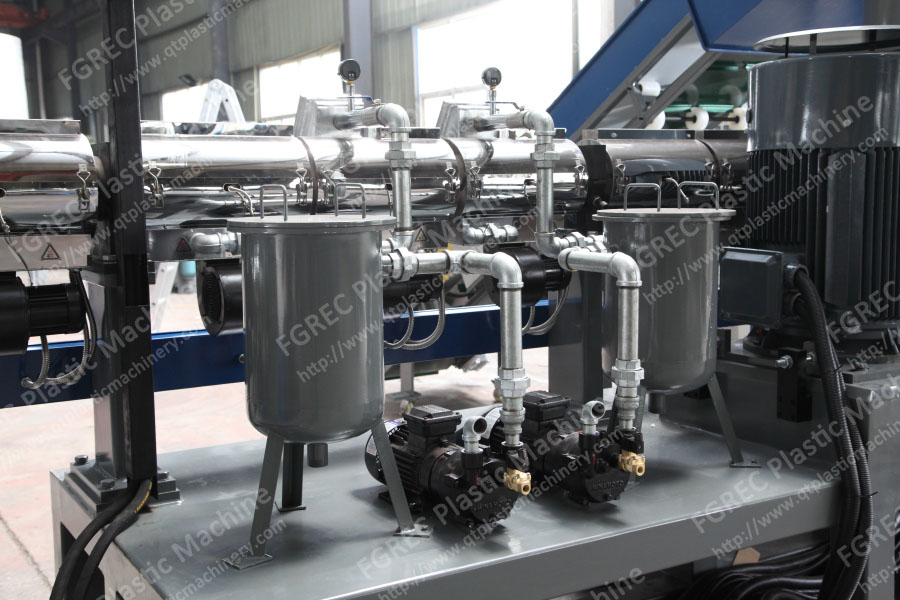

LDPE Plastic Bag Granulating Machine

The whole production line has the characteristics of automation, high efficiency and low energy consumption from feeding to output. Meanwhile, according to the actual requirements of customers, customer can realize one machine multifunctional for both film materials and regrind plastics granulating. For example, our ML series plastic granulating machine is equipped with Cutter Compactor, from Belt conveyor we feed the film soft materials, while from Side Feeder and Spiral charger, we can feed plastic regrind materials into the extruder.

Besides, regards high MFI plastic materials, such as PP non woven, PP injection wastes and BOPP film, etc, our company designed new type advanced Vertical Water Ring Pelletizing System to replace strand pelletizing, in this way to realize continuous running without stop when changing filter screen. This plastic granulation production line can also save factory space occupation for customers.

HDPE Plastic Bag Granulating Machine

Our plastic recycling granulation production lines can meet the EU standards and it is produced in strict accordance with national standards. We always adhere to the concept of high efficiency, stability and energy saving. To provide suitable production solutions for our customers, we can help our customers turn waste into treasure, create profits and achieve mutual benefit.

We have different output, 60-100kg/h,100-150kg/h,150-250kg/h,250-350kg/h.400-550kg/h,600-750kg/h,800-1000kg/h.
Please refer to the detailed parameters.

If you have any questions, please feel free to contact us.
Consultation to achieve a win-win situation.

PP/LLDPE/LDPE/HDPE Plastic Film/Bag Granulating Machine Design Scheme

Machine ML65 ML75 ML85 ML100 ML130 ML160 ML180
Capacity(kg/h) 60-100 100-150 150-250 250-350 400-550 600-750 800-1000
Screw(mm) 65 75 85 100 130 160 180
Main Motor(kw) 37 45 55 90 110/132 185/200 250
Compactor(kw) 22 30 37 55 90 110/132 160/185
L/D 33 33 33 33 33 33 33
Screw Max Speed 120rpm 120rpm 120rpm 120rpm 120rpm 120rpm 120rpm
Total Power Consumption 40kwh 55kwh 66kwh 100kwh 135kwh 195kwh 265kwh
Delivery Time 55-60 Day 55-60 Day 55-60 Day 55-60 Day 55-60 Day 55-60 Day 55-60 Day
Workers One One One One Two Two Three



PP/LLDPE/LDPE/HDPE Plastic Film/Bag Granulating Machine Design Scheme

Machine ML85-85 ML100-100 ML130-130 ML160-160 ML180-180
Capacity(kg/h) 150-250 250-350 400-550 600-750 800-1000
First Stage Screw(mm) 85 100 130 160 180
First Stage Main Motor(kw) 55 90 110/132 185/200 250
Compactor Motor(kw) 37 55 90 110/132 160/185
First Stage Screw L/D 33 33 33 33 33
Second Stage Screw(mm) 85 100 130 160 180
Second Stage Main Power(kw) 18.5 30 45 55 75
Second Stage Screw L/D 10 10 10 10 10
Screw Max Speed 120rpm 120rpm 120rpm 120rpm 120rpm
Total Power Consumption 66kwh 100kwh 135kwh 195kwh 265kwh
Delivery Time 55-60 Day 55-60 Day 55-60 Day 55-60 Day 55-60 Day
Workers One One Two Two Three
