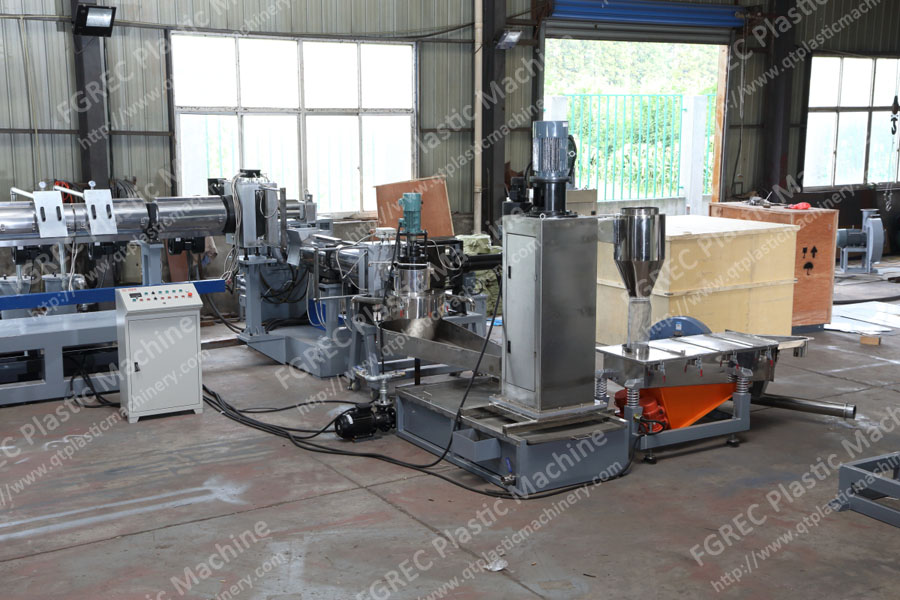

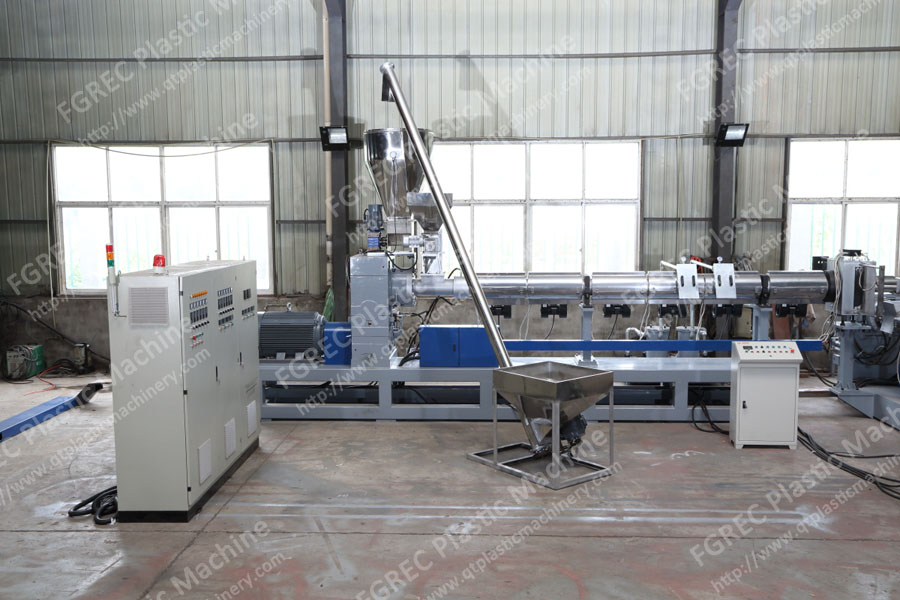

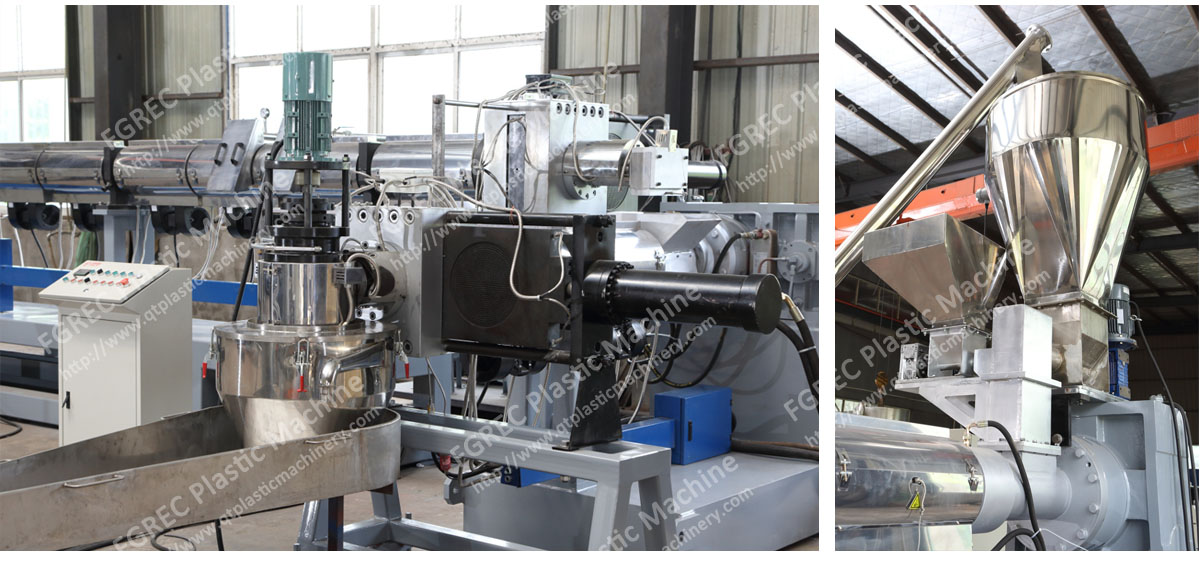

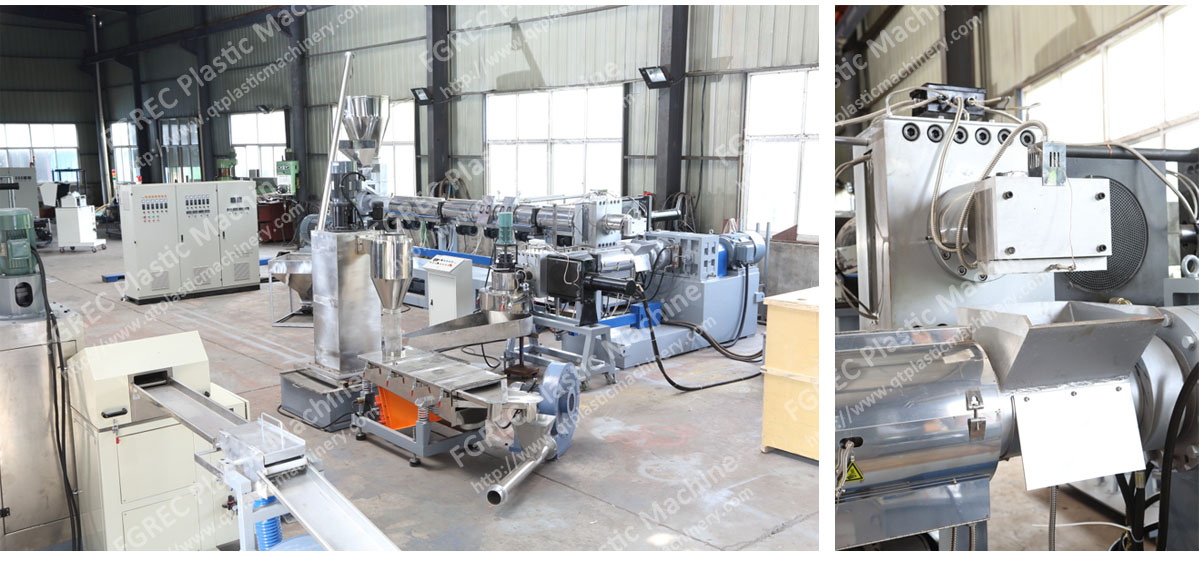

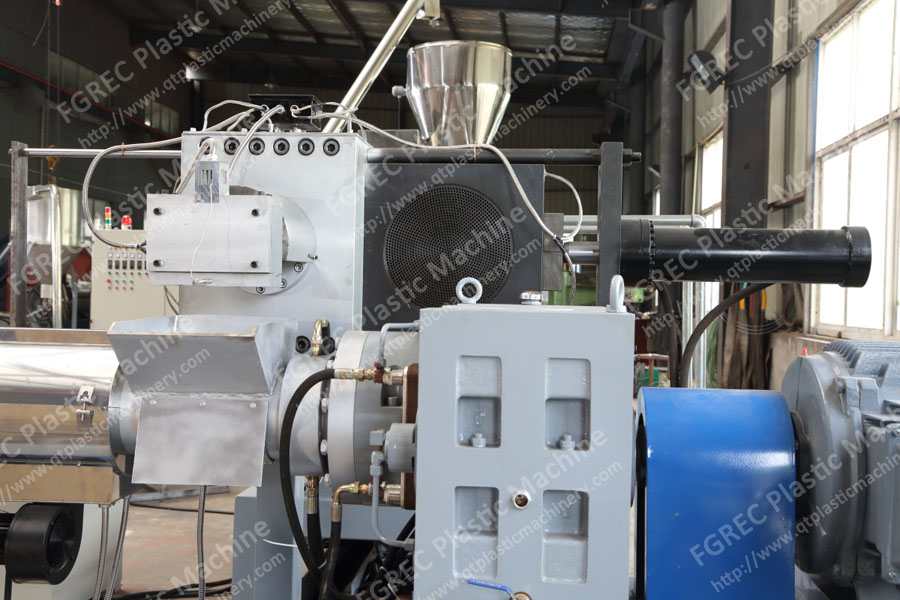

NAME:PP/PE/ABS/PS Hard Plastic Flakes Granulating Machine

Plastic recycling can be divided into two categories: soft plastic recycling and hard plastic recycling. PP and PE waste hard plastics recycling occupy the majority of hard plastic recycling. This kind of hard plastics include plastic barrel, bottles, chairs, batteries, waste injection, etc.

In view of the uncertainty of the recycling method and storage state of the waste hard plastics, and the waste plastics contain various of impurities, such as: label paper, food residue, straw, wood chips, sand, and so on. In the recycling process, if customer wants to get clean clear color and transparent granules, customer has to wash the film plastics before granulating if the materials are not clean. After continuous research and improvement by our company, we have designed plastic granulating solutions according to our client’s actual plastic material conditions. From the waste materials to the final products processing, we always adhere high efficiency, energy saving and stability. Solve problems for customers and achieve mutual benefit and win-win.

We consult foreign advanced equipment technology, visit our customers’ factories, listen carefully to customers’ actual operating experience, digest and absorb the advanced concepts of the recycling industry, and combine the actual development of the waste plastics industry to continuously improve the design of equipment components, which can meet the domestic and international recycling plastics industry. Requirements and ability to meet the environmental policy of the local recycling industry.

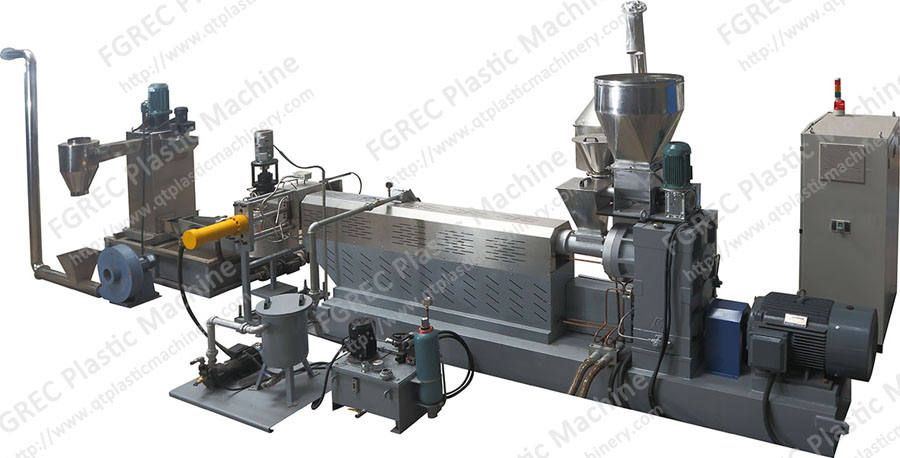

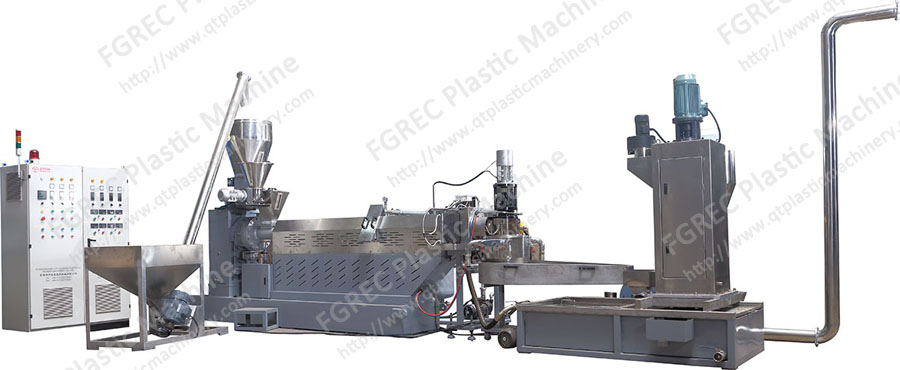

Waste PP PE hard plastic pelletizing production line mainly consists of Spiral loader, Hopper Feeder, Single Screw Extruder, Degassing, Hydraulic Screen Changer, Die Mould, Water ring Pelletizing or Spaghetti Pelletizing, Centrifugal Dewatering or Cooling Water Tank, Silo, and Electric Control Panel.

The whole production line has the characteristics of automation, high efficiency and low energy consumption from feeding to output. Meanwhile, according to the actual requirements of customers, customer can realize one machine multifunctional for both regrind plastic and squeezed/agglomerated materials pelletizing. For example, our SJ series plastic pelletizing machine can process PP PE regrind plastics, crushed ABS, PS, PC and Agglomerated/ Squeezed materials.

Besides, regards high MFI plastic materials, such as PP non woven, PP injection wastes and BOPP film, etc, our company designed new type advanced Vertical Water Ring Pelletizing System to replace strand pelletizing, in this way to realize continuous running without stop when changing filter screen. This plastic granulation production line can also save factory space occupation for customers.

Our plastic recycling granulation production line can meet the EU standards and it is produced in strict accordance with national standards. We always adhere to the concept of high efficiency, stability and energy saving. To provide suitable production solutions for our customers, we can help our customers turn waste into treasure, create profits and achieve mutual benefit.

We have different output, 100-150kg/h,150-250kg/h,200-300kg/h,300-400kg/h.400-550kg/h,600-750kg/h,800-1000kg/h.
Please refer to the detailed parameters.

If any questions, please feel free to contact us.
Consultation to achieve a win-win situation.

PP/PE/ABS/PS Hard Plastic Flakes Granulating Machine Design Scheme

Machine SJ90 SJ100 SJ120 SJ130 SJ150 SJ160 SJ180
Capacity(kg/h) 100-150 150-250 200-300 300-400 400-550 600-750 800-1000
Screw(mm) 90 100 120 130 150 160 180
Main Motor(kw) 55 75 90 132 160/185 185/220 250
L/D 33 33 33 35 35 35 35
Screw Max Speed 120rpm 120rpm 90rpm 90rpm 90rpm 90rpm 90rpm
Total Power Consumption 50kwh 60kwh 70kwh 90kwh 115kwh 135kwh 185kwh
Delivery Time 50-55Day 50-55Day 50-55Day 50-55Day 50-55Day 50-55Day 50-55Day
Workers One One One Two Two Two Two

PP/PE/ABS/PS Hard Plastic Flakes Granulating Machine Design Scheme

Machine SJ120-120 SJ130-130 SJ150-150 SJ160-160 SJ180-180
Capacity(kg/h) 200-350 300-400 400-550 600-750 800-1000
First Stage Screw(mm) 120 130 140 160 180
First Stage Main Motor(kw) 75/90/110 110/132 160 185/220 250
First Stage Screw L/D 33 35 35 35 35
Second Stage Screw (mm) 120 130 150 160 180
Second Stage Main Motor(kw) 22/30 45 55 75 75
Second Stage Screw L/D 10 10 10 10 10
Screw Max Speed 90rpm 90rpm 90rpm 90rpm 90rpm
Total Power Consumption 65-85kwh 105-117kwh 150kwh 178-200kwh 230kwh
Delivery Time 50-55Day 50-55Day 50-55Day 50-55Day 50-55Day
Workers One Two Two Two Two

Do you have any questions to ask
please let us know.
