Plastic recycling can be divided into two categories: soft materials and hard materials recycling. Waste plastic film and packaging bag recycling account for a large proportion of the entire plastic recycling industry. Such soft plastic materials include bags for daily use, mulch, waste industrial film, ground film, agricultural film, etc. .

In view of the uncertainty of the plastic recycling method and storage state of the waste film, and the waste hard material contains various impurities, such as label paper, food residue, oil stain, metal, and sediment. In the recycling granulation process, these impurity factors should be fully considered. For the traditional film cleaning and recycling, most users use film Crusher to crush  the film into small pieces to clean and granulation, but for this film crusher, the largest The defect is that the service life of the crushing knife is short, resulting in low production and high energy consumption in the production process. In order to completely solve this problem, our company proposed twin shaft film shredder to solve this problem.

After continuous research and improvement by our company, we have designed the shredding scheme according to the actual material conditions of the customers. From the waste materials to the finished products, we always adhere to high efficiency, energy saving and stability. Solve problems for customers and achieve mutual benefit and win-win.

We draw on foreign advanced equipment technology, visit customers’ factories, listen carefully to customers’ actual operating experience, digest and absorb the advanced concepts of plastic recycling industry, and combine the actual development of the waste plastics industry to continuously improve the design of equipment components, which can meet the domestic and global recycling plastics industry. Requirements and ability to meet the environmental requirements of the local recycling industry.

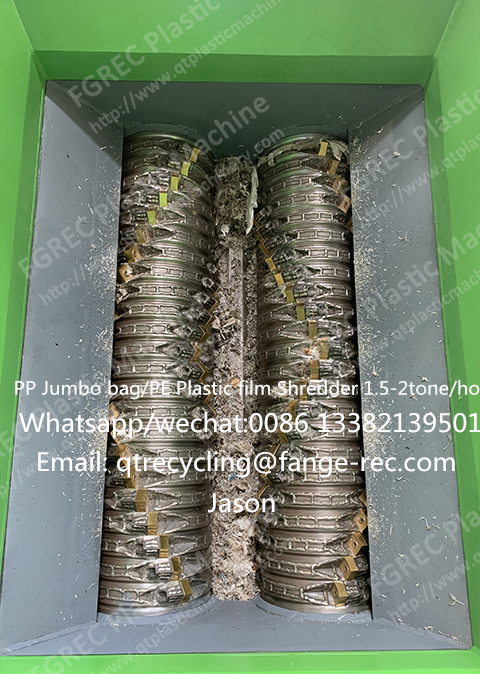

The acquired waste film has the following characteristics: 1 There are many kinds of impurities in the film, such as sediment, pebbles, metal, food, etc. 2 The length of the film is uncertain and the pulling strength is relatively high. In view of the above two outstanding problems, our company adopts specific cutters, which have strong wear resistance and reasonable toughness, which can solve the above two problems, and the shredder screen designed by our company has high strength and is not easy to be deformed. The shredded film is very small in size and does not have long strips, which can completely solve the troubles that may lead to film washing line.

The waste plastic recycling line produced by our company can meet the EU standards and is produced in strict accordance with national standards. We always adhere to the concept of high efficiency, stability and energy saving. By tailoring suitable production solutions for our customers, we can help our customers turn waste into treasure, create profits and achieve mutual benefit.

Our company’s waste plastic film shredder has different output, 500-800kg/h, 800-1100kg/h, 1000-1300kg/h, 1500-2000kg/h, please refer to the detailed parameters, if you have any questions, welcome to contact us! Thank you.

型号 Model FGSF750 FGSF900 FGSF1100 FGSF1400
回转直径Rotary Diameter (mm) Φ400 Φ400 Φ400 Φ400
主轴转速Main Shaft Speed(rpm) 73 73 73 73
动刀数量Rotary Blade Qty 39×2 45×2 57×2 69×2
定刀数量Fixed Blade Qty (12+2)×2 (14+2)×2 (20+2)×2 (24+2)×2
粉碎腔尺寸Shredder Chamber(mm) 1100×768 1100×900 1100×1131 1100×1362
筛网孔径Screen Size(mm) 622 622 622 622
主机功率Main Motor Power(kw) 2×37 2×45 2×55 2×75
外形尺寸Overall Size(L×W×H) 2701×2105×2151 2800×2105×2151 3520×2259×2151 3751×2259×2151
产量Capacity(kg) 500-800kg/h 800-1100kg/h 1000-1300kg/h 1500-2000kg/h
重量Weight(kg) 5700 5800 6500 7000
